OVERVIEW

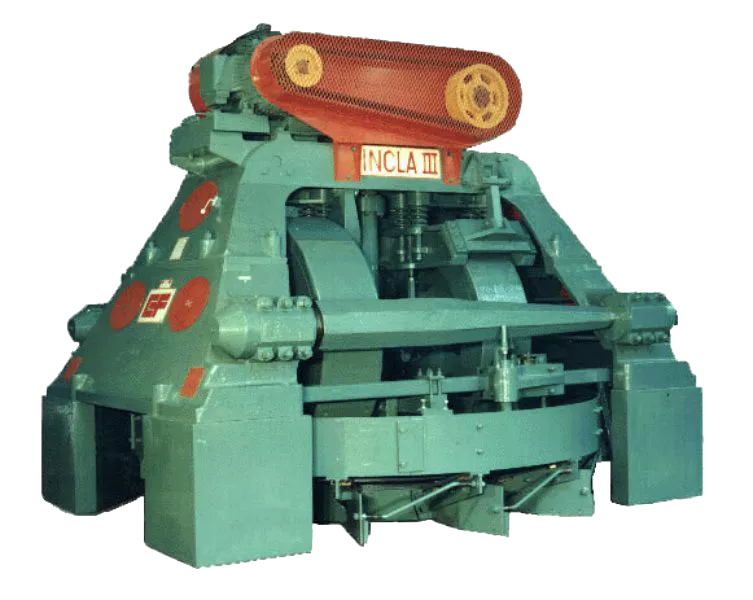

Incla II and Incla III Dry Grinding Mills

  • Heavy-duty mills capable of grinding shales, marls and clays of a dry nature at high outputs.
  • Fitted with inclined grids, a roller suspension device (optional), a worm reduction gearbox and fully adjustable curved scrapers.
  • An optional hydraulic drive is available.
  • Both mills have a 3.35 mtr diameter base.
  • Incla II has 5-tonne rollers, Incla III has 6-tonne offset mounted rollers for finer grinding

Specification

M/c Size

3.35 metre diameter

Material Output

1 - 4 mm

Throughput

15 - 25 T/hr

Material Input

up to 200mm

Power

55 kW

M/c Size

3.35 metre diameter

Material Output

1 - 4 mm

Throughput

20 - 40 T/hr

Material Input

up to 200mm

Power

75 kW
